Post by thomas on Sept 7, 2013 6:09:55 GMT -5
Type 2 1900–01

Year of manufacture 1900/01
Units built 1
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] –/90 x 120
Power [HP at revolutions/min] –
Wheelbase [meters] 1.8
Weight [kilograms] 650
Type 5 1903

Year of manufacture 1903
Units built 2
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] 12867/160 x 160
Power [HP at revolutions/min] 45
Drive chain drive
Front wheel suspension quarter-elliptical springs
Back wheel suspension quarter-elliptical springs
Wheelbase [meters] 3
Wheel track [meters] 1.25
Type 10 1909

Year of manufacture 1909
Units built 1
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1208/62 x 100
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 20
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle
Brakes Cable drum brakes
Wheelbase [meters] 2
Wheel track [meters] 1
Tire size 650 x 65
Weight [kilograms] 320
Type 13, 15, 17 (8-cylinder) 1910–1920


Year of manufacture 1910–1920
Units built about 485
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] 1327/65 x 100
Carburetor Zenith 30
Power [HP at revolutions/min] about 20
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension semi-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] T13
Wheel track [meters] 1.15
Tire size 6.50 x 65
Weight [kilograms] 350–450
Type 13, 22, 23 1914 and 1919–26

Year of manufacture 1914 and 1919–26
Units built 2005 (all Brescia)
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1368/60 x 100
Compressor no
Carburetor 1 or 2 Zenith
Power [HP at revolutions/min] 30 at 4500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle
Brakes Cable drum brakes
Wheelbase [meters] T13
Wheel track [meters] 1.15
Tire size 650 x 65
Weight [kilograms] 450
Type 16 Bébé 1912–14

Year of manufacture 1912–1914
Units built more than 3000
Engine Water-cooled, straight 4, L-head
Cubic capacity/bore [cm³/mm] 855/ 55x90
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 12
Forward gears 3
Drive shaft-driven
Front wheel suspension semi-elliptical springs
Back wheel suspension quarter-elliptical springs
Brakes drum brakes
Wheelbase [meters] 2
Wheel track [meters] 1
Tire size 650 x 60
Weight [kilograms] less than 400
Type 18 1908, 1912–14

Year of manufacture 1908, 1912–14
Units built 7
Engine 4-cylinder in-line engine, 3 valve/cylinder
Cubic capacity/bore [cm³/mm] 5026/100 x 160
Compressor no
Carburetor Zenith
Power [HP at revolutions/min] 90
Forward gears 4
Drive chain drive
Front wheel suspension live axle, doppelte semi-elliptical springs
Back wheel suspension live axle quarter-elliptical springs
Brakes cable drum brakes
Wheelbase [meters] 2.54
Wheel track [meters] 1.25
Tire size 880 x 120
Weight [kilograms] approx. 1250
Type 28 1920–21

Year of manufacture 1920–21
Units built 1
Engine 8 cylinder in-line
Cubic capacity/bore [cm³/mm] 2991/69 x 100
Compressor –
Carburetor 2 Bugatti
Power [HP at revolutions/min] 80 at 3400 U/Min
Forward gears 2
Drive shaft-driven
Front wheel suspension live axle semi-elliptic
Back wheel suspension live axle quarter-elliptic
Brakes cable drum brakes
Wheelbase [meters] 3.15
Wheel track [meters] 1.3
Tire size 765 x 105
Weight [kilograms] 890
Type 29 1922

Year of manufacture 1922
Units built 7
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 90
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.55
Wheel track [meters] 1.15
Tire size 765 x 105
Weight [kilograms] approx. 700
Type 30 1922–26

Year of manufacture 1922–26
Units built approx. 600
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 199/60 x 88
Compressor no
Carburetor 2 Zenith
Power [HP at revolutions/min] 70 at 3800
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.55
Wheel track [meters] 1.2
Tire size 765 x 105
Weight [kilograms] approx. 825
Type 32 1923

Year of manufacture 1923
Units built 5
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor –
Carburetor 2 Zenith
Power [HP at revolutions/min] approx. 80
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle,
inverted quarter-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.0
Wheel track [meters] 1.05
Tire size 710 x 90
Weight [kilograms] approx. 650
Type 35 1924–31

Year of manufacture 1924–31
Units built more than 300 (all 35 versions)
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 199/60 x 88
Compressor no
Carburetor 2 Solex
Power [HP at revolutions/min] 90 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 710 x 90
Weight [kilograms] approx. 750
Type 36 1926

Year of manufacture 1926
Units built 3
Engine 8-cylinder in-line engine
Cubic capacity/bore [cm^3/mm] 1092/51.3 x 60
Compressor 1 Roots
Carburetor Zenith
Power [HP at revolutions/min] 55
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, no springs
Back wheel suspension live axle, no springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 710 x 90
Weight [kilograms] 630
Type 37 1925–30

Year of manufacture 1925–30
Units built 286
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor yes at T 37A
Carburetor 1 Zenith or Solex
Power [HP at revolutions/min] 60 at 4700
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 27 x 4.40
Weight [kilograms] approx. 750
Type 38 1926–27

Year of manufacture 1926–27
Units built 385
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor yes at T38A
Carburetor 2 Zenith or Solex 30
Power [HP at revolutions/min] 70
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 860
Type 39 1925–27

Year of manufacture 1925–27
Units built 15
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1493/60 x 66
Compressor yes (at T39A)
Carburetor Zenith or 2 Solex
Power [HP at revolutions/min] 120 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 28 x 4.95
Weight [kilograms] approx. 750
Type 40 1926–30

Year of manufacture 1926–30
Units built approx. 800
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor no
Carburetor 1 Zenith
Power [HP at revolutions/min] 45
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.56 und 2.71
Wheel track [meters] 1.2
Tire size 27 x 4.4
Weight [kilograms] approx. 900
Type 41 “Royale” 1926–33

Year of manufacture 1926–30
Units built approx. 800
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor no
Carburetor 1 Zenith
Power [HP at revolutions/min] 45
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.56 und 2.71
Wheel track [meters] 1.2
Tire size 27 x 4.4
Weight [kilograms] approx. 900
Type 43 1927–31

Year of manufacture 1927–31
Units built 160
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Solex or Zenith
Power [HP at revolutions/min] 120 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.97
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 1100
Type 44 1927–30

Year of manufacture 1927–31
Units built 160
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Solex or Zenith
Power [HP at revolutions/min] 120 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.97
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 1100
Type 45, 47 1929–30

Year of manufacture 1929–30
Units built 2
Engine 16 cylinder, U-type, 3 valve/cylinder, 1+1 overhead camshafts
Cubic capacity/bore [cm³/mm] 3801/60 x 84, 2986/60 x 66
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 240 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6 (2.75)
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 900 (1000)
Type 46 1929–33

Year of manufacture 1929–33
Units built approx. 450
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 5359/81 x 130
Compressor no
Carburetor 1 Smith
Power [HP at revolutions/min] 140 at 3500
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.5
Wheel track [meters] 1.4
Tire size 32 x 6
Weight [kilograms] approx. 1500
Type 49 1930–34

Year of manufacture 1930–34
Units built 470
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshaft
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor no
Carburetor 1 Schebler
Power [HP at revolutions/min] 85
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12 (3.22)
Wheel track [meters] 1.25
Tire size 28 x 5.25
Weight [kilograms] approx. 1200
Type 50 1931–33

Year of manufacture 1931–33
Units built 65
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith or 2 Schebler
Power [HP at revolutions/min] 225 at 4000
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12
Wheel track [meters] 1.4
Tire size 20 x 6.5
Weight [kilograms] approx. 1500
Type 51 1931–34

Year of manufacture 1931–34
Units built 40
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Zenith
Power [HP at revolutions/min] 160
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.25
Tire size 28 x 5
Weight [kilograms] approx. 780
“Bébé”

The Type 52 is a small version of the T 35 Grand Prix car for children.
Originally it was designed to be used by Ettore Bugattis son Roland, who was born in 1922. Even some competitions became fashionable for the children of wealthy parents to race against one another on the Summer promenades of the chic seaside spa resorts with their “Baby”. Not in one of the official works brochures the “Baby” is named as T 52. It was known as the “Baby” only.
Type 53 1931–32

Year of manufacture 1931–32
Units built 3
Engine 8-cylinder in-line engine, 2 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 300 at 4500
Forward gears 4
Drive 2 shafts
Front wheel suspension independent, quarter-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6
Wheel track [meters] 1.25
Tire size 28 x 5
Weight [kilograms] 1300
Type 54 1932–34

Year of manufacture 1932–34
Units built 10
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 300 at 4000
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.75
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 1100
Type 55 1931–35

Year of manufacture 1931–35
Units built 38
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Zenith
Power [HP at revolutions/min] 130 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.75
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 1200
Type 56 (Electric Vehicle)

Ettore Bugatti originally developed this little electrically powered two-seater because he wanted a vehicle with which he could easily drive around the plant and its vicinity.
The Type 56 was never intended for serial production, but popular demand in the form of his customers’ urging convinced Ettore to reconsider and build the little electric car.
Type 57, 57S 1934–39

Year of manufacture 1934–39
Units built 685
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes, at T57C and 57SC
Carburetor Stromberg
Power [HP at revolutions/min] 135 at 5000 (T57S)
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.3 (T 57S)
Wheel track [meters] 1.35
Tire size 18 x 5.5
Weight [kilograms] approx. 950
Type 59 1933–35

Year of manufacture 1933–35
Units built 8
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 250 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6
Wheel track [meters] 1.25
Tire size 5.50 x 19
Weight [kilograms] approx. 750

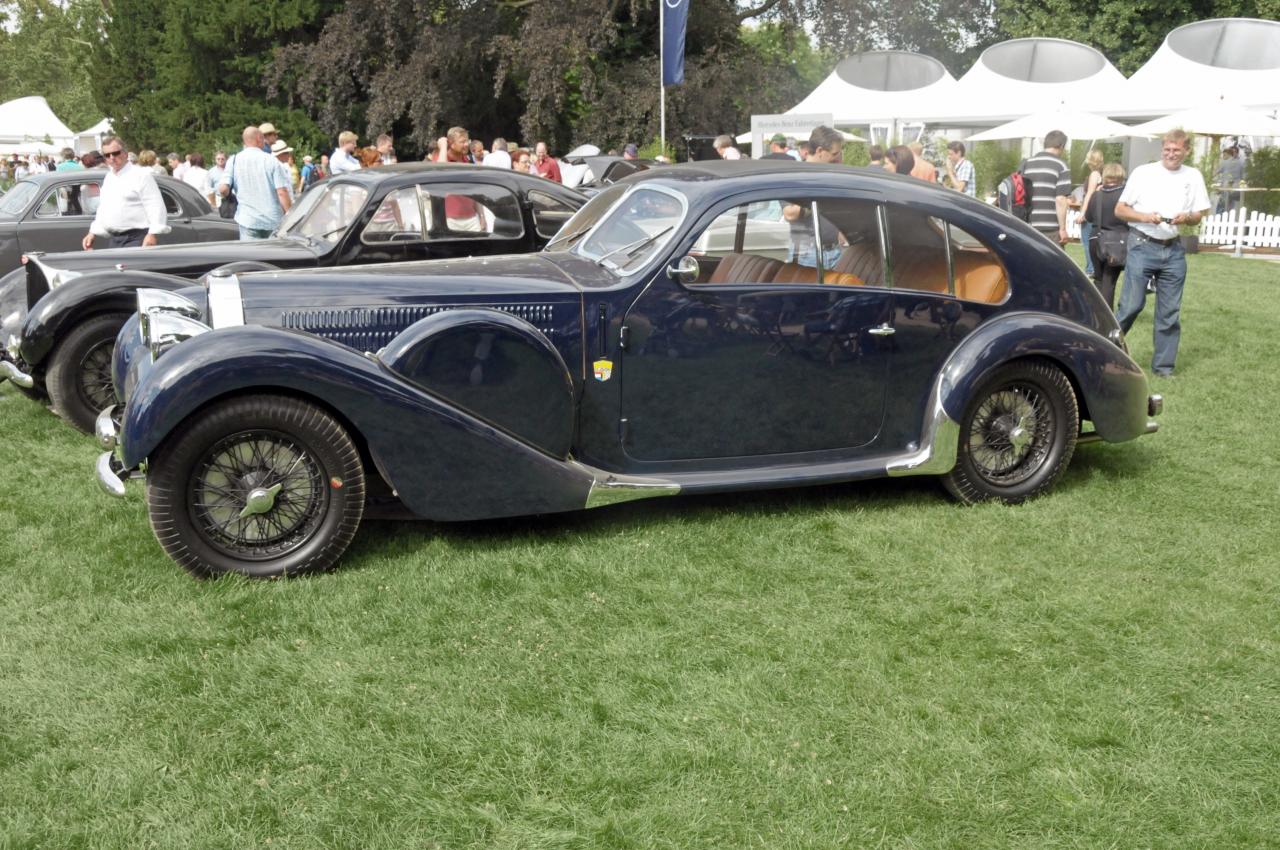

Type 64 1939

Year of manufacture 1939
Units built 1
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4432/84 x 100
Compressor yes
Carburetor Stromberg
Power [HP at revolutions/min] 170
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.3
Wheel track [meters] 1.35
Tire size 18 x 550
Weight [kilograms] 1300
Type 68 1945–46

Year of manufacture 1945-46
Units built 2
Engine 4-cylinder in-line engine, 4 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 320/48.5 x 50
Compressor yes
Carburetor 1 Solex
Power [HP at revolutions/min] 25
Forward gears 2
Drive -
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, reverse quarter-elliptical springs
Wheelbase [meters] 2.2
Wheel track [meters] 1.15
Tire size -
Weight [kilograms] 400
Type 73 1945–47

Year of manufacture 1945–47
Units built 1
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshaft
Cubic capacity/bore [cm³/mm] 1488/76 x 82
Compressor -
Carburetor 1 Weber
Power [HP at revolutions/min] –
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 18 x 5
Weight [kilograms] 800
Type 101 1951

Year of manufacture 1951
Units built 8
Engine 8-cylinder in-line engine, 2 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes, at T101C
Carburetor 1 Weber
Power [HP at revolutions/min] 135 at 5500
Forward gears 5
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Hydraulic drum brakes
Wheelbase [meters] 3.3
Wheel track [meters] 1.35
Tire size 6 x 17
Weight [kilograms] Chassis only approx. 1050, with body approx. 1450
Type 251 1955–56

Year of manufacture 1955–56
Units built 3
Engine 8-cylinder in-line engine, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2486/76 x 68.5
Compressor -
Carburetor 4 Weber
Power [HP at revolutions/min] 230
Forward gears 5
Drive shaft-driven
Front wheel suspension live axle
Back wheel suspension de Dion
Brakes disc brakes
Wheelbase [meters] 2.186 (2nd Version 2.3)
Wheel track [meters] front: 1.3, rear: 1.28
Tire size 17 x 6
Weight [kilograms] 750

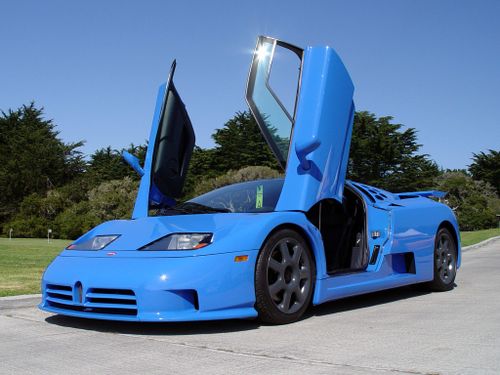

EB 110 1991–94

Year of manufacture 1991–94
Units built 139
Engine V12, 4 overhead camshafts
Cubic capacity/bore [cm³/mm] 3500/81 x 56.6
Compressor 4 turbo charger
Carburetor electronic fuel injection
Power [HP at revolutions/min] 560
Forward gears 6
Drive 4-wheel
Front wheel suspension wishbone axle
Back wheel suspension double wishbone axle
Brakes internally ventilated disc brakes
Wheelbase [meters] 2.55
Wheel track [meters] front: 1.55, rear: 1.62
Tire size front: 245/40 R18, rear: 325/30 R 18
Weight [kilograms] approx. 1600

Year of manufacture 1900/01
Units built 1
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] –/90 x 120
Power [HP at revolutions/min] –
Wheelbase [meters] 1.8
Weight [kilograms] 650
Type 5 1903

Year of manufacture 1903
Units built 2
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] 12867/160 x 160
Power [HP at revolutions/min] 45
Drive chain drive
Front wheel suspension quarter-elliptical springs
Back wheel suspension quarter-elliptical springs
Wheelbase [meters] 3
Wheel track [meters] 1.25
Type 10 1909

Year of manufacture 1909
Units built 1
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1208/62 x 100
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 20
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle
Brakes Cable drum brakes
Wheelbase [meters] 2
Wheel track [meters] 1
Tire size 650 x 65
Weight [kilograms] 320
Type 13, 15, 17 (8-cylinder) 1910–1920


Year of manufacture 1910–1920
Units built about 485
Engine 4 cylinder
Cubic capacity/bore [cm³/mm] 1327/65 x 100
Carburetor Zenith 30
Power [HP at revolutions/min] about 20
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension semi-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] T13
Wheel track [meters] 1.15
Tire size 6.50 x 65
Weight [kilograms] 350–450
Type 13, 22, 23 1914 and 1919–26

Year of manufacture 1914 and 1919–26
Units built 2005 (all Brescia)
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1368/60 x 100
Compressor no
Carburetor 1 or 2 Zenith
Power [HP at revolutions/min] 30 at 4500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle
Brakes Cable drum brakes
Wheelbase [meters] T13
Wheel track [meters] 1.15
Tire size 650 x 65
Weight [kilograms] 450
Type 16 Bébé 1912–14

Year of manufacture 1912–1914
Units built more than 3000
Engine Water-cooled, straight 4, L-head
Cubic capacity/bore [cm³/mm] 855/ 55x90
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 12
Forward gears 3
Drive shaft-driven
Front wheel suspension semi-elliptical springs
Back wheel suspension quarter-elliptical springs
Brakes drum brakes
Wheelbase [meters] 2
Wheel track [meters] 1
Tire size 650 x 60
Weight [kilograms] less than 400
Type 18 1908, 1912–14

Year of manufacture 1908, 1912–14
Units built 7
Engine 4-cylinder in-line engine, 3 valve/cylinder
Cubic capacity/bore [cm³/mm] 5026/100 x 160
Compressor no
Carburetor Zenith
Power [HP at revolutions/min] 90
Forward gears 4
Drive chain drive
Front wheel suspension live axle, doppelte semi-elliptical springs
Back wheel suspension live axle quarter-elliptical springs
Brakes cable drum brakes
Wheelbase [meters] 2.54
Wheel track [meters] 1.25
Tire size 880 x 120
Weight [kilograms] approx. 1250
Type 28 1920–21

Year of manufacture 1920–21
Units built 1
Engine 8 cylinder in-line
Cubic capacity/bore [cm³/mm] 2991/69 x 100
Compressor –
Carburetor 2 Bugatti
Power [HP at revolutions/min] 80 at 3400 U/Min
Forward gears 2
Drive shaft-driven
Front wheel suspension live axle semi-elliptic
Back wheel suspension live axle quarter-elliptic
Brakes cable drum brakes
Wheelbase [meters] 3.15
Wheel track [meters] 1.3
Tire size 765 x 105
Weight [kilograms] 890
Type 29 1922

Year of manufacture 1922
Units built 7
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor –
Carburetor Zenith
Power [HP at revolutions/min] 90
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.55
Wheel track [meters] 1.15
Tire size 765 x 105
Weight [kilograms] approx. 700
Type 30 1922–26

Year of manufacture 1922–26
Units built approx. 600
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 199/60 x 88
Compressor no
Carburetor 2 Zenith
Power [HP at revolutions/min] 70 at 3800
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.55
Wheel track [meters] 1.2
Tire size 765 x 105
Weight [kilograms] approx. 825
Type 32 1923

Year of manufacture 1923
Units built 5
Engine 4-cylinder in-line engine, 2 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor –
Carburetor 2 Zenith
Power [HP at revolutions/min] approx. 80
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle,
inverted quarter-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.0
Wheel track [meters] 1.05
Tire size 710 x 90
Weight [kilograms] approx. 650
Type 35 1924–31

Year of manufacture 1924–31
Units built more than 300 (all 35 versions)
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 199/60 x 88
Compressor no
Carburetor 2 Solex
Power [HP at revolutions/min] 90 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 710 x 90
Weight [kilograms] approx. 750
Type 36 1926

Year of manufacture 1926
Units built 3
Engine 8-cylinder in-line engine
Cubic capacity/bore [cm^3/mm] 1092/51.3 x 60
Compressor 1 Roots
Carburetor Zenith
Power [HP at revolutions/min] 55
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, no springs
Back wheel suspension live axle, no springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 710 x 90
Weight [kilograms] 630
Type 37 1925–30

Year of manufacture 1925–30
Units built 286
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor yes at T 37A
Carburetor 1 Zenith or Solex
Power [HP at revolutions/min] 60 at 4700
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 27 x 4.40
Weight [kilograms] approx. 750
Type 38 1926–27

Year of manufacture 1926–27
Units built 385
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1991/60 x 88
Compressor yes at T38A
Carburetor 2 Zenith or Solex 30
Power [HP at revolutions/min] 70
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 860
Type 39 1925–27

Year of manufacture 1925–27
Units built 15
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1493/60 x 66
Compressor yes (at T39A)
Carburetor Zenith or 2 Solex
Power [HP at revolutions/min] 120 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 28 x 4.95
Weight [kilograms] approx. 750
Type 40 1926–30

Year of manufacture 1926–30
Units built approx. 800
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor no
Carburetor 1 Zenith
Power [HP at revolutions/min] 45
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.56 und 2.71
Wheel track [meters] 1.2
Tire size 27 x 4.4
Weight [kilograms] approx. 900
Type 41 “Royale” 1926–33

Year of manufacture 1926–30
Units built approx. 800
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 1496/69 x 100
Compressor no
Carburetor 1 Zenith
Power [HP at revolutions/min] 45
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.56 und 2.71
Wheel track [meters] 1.2
Tire size 27 x 4.4
Weight [kilograms] approx. 900
Type 43 1927–31

Year of manufacture 1927–31
Units built 160
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Solex or Zenith
Power [HP at revolutions/min] 120 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.97
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 1100
Type 44 1927–30

Year of manufacture 1927–31
Units built 160
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Solex or Zenith
Power [HP at revolutions/min] 120 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.97
Wheel track [meters] 1.25
Tire size 28 x 4.95
Weight [kilograms] approx. 1100
Type 45, 47 1929–30

Year of manufacture 1929–30
Units built 2
Engine 16 cylinder, U-type, 3 valve/cylinder, 1+1 overhead camshafts
Cubic capacity/bore [cm³/mm] 3801/60 x 84, 2986/60 x 66
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 240 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6 (2.75)
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 900 (1000)
Type 46 1929–33

Year of manufacture 1929–33
Units built approx. 450
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshafts
Cubic capacity/bore [cm³/mm] 5359/81 x 130
Compressor no
Carburetor 1 Smith
Power [HP at revolutions/min] 140 at 3500
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.5
Wheel track [meters] 1.4
Tire size 32 x 6
Weight [kilograms] approx. 1500
Type 49 1930–34

Year of manufacture 1930–34
Units built 470
Engine 8-cylinder in-line engine, 3 valve/cylinder, overhead camshaft
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor no
Carburetor 1 Schebler
Power [HP at revolutions/min] 85
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12 (3.22)
Wheel track [meters] 1.25
Tire size 28 x 5.25
Weight [kilograms] approx. 1200
Type 50 1931–33

Year of manufacture 1931–33
Units built 65
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith or 2 Schebler
Power [HP at revolutions/min] 225 at 4000
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.12
Wheel track [meters] 1.4
Tire size 20 x 6.5
Weight [kilograms] approx. 1500
Type 51 1931–34

Year of manufacture 1931–34
Units built 40
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Zenith
Power [HP at revolutions/min] 160
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.25
Tire size 28 x 5
Weight [kilograms] approx. 780
“Bébé”

The Type 52 is a small version of the T 35 Grand Prix car for children.
Originally it was designed to be used by Ettore Bugattis son Roland, who was born in 1922. Even some competitions became fashionable for the children of wealthy parents to race against one another on the Summer promenades of the chic seaside spa resorts with their “Baby”. Not in one of the official works brochures the “Baby” is named as T 52. It was known as the “Baby” only.
Type 53 1931–32

Year of manufacture 1931–32
Units built 3
Engine 8-cylinder in-line engine, 2 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 300 at 4500
Forward gears 4
Drive 2 shafts
Front wheel suspension independent, quarter-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6
Wheel track [meters] 1.25
Tire size 28 x 5
Weight [kilograms] 1300
Type 54 1932–34

Year of manufacture 1932–34
Units built 10
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4972/86 x 107
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 300 at 4000
Forward gears 3
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.75
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 1100
Type 55 1931–35

Year of manufacture 1931–35
Units built 38
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2262/60 x 100
Compressor yes
Carburetor Zenith
Power [HP at revolutions/min] 130 at 5000
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.75
Wheel track [meters] 1.25
Tire size 28 x 4.75
Weight [kilograms] approx. 1200
Type 56 (Electric Vehicle)

Ettore Bugatti originally developed this little electrically powered two-seater because he wanted a vehicle with which he could easily drive around the plant and its vicinity.
The Type 56 was never intended for serial production, but popular demand in the form of his customers’ urging convinced Ettore to reconsider and build the little electric car.
Type 57, 57S 1934–39

Year of manufacture 1934–39
Units built 685
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes, at T57C and 57SC
Carburetor Stromberg
Power [HP at revolutions/min] 135 at 5000 (T57S)
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.3 (T 57S)
Wheel track [meters] 1.35
Tire size 18 x 5.5
Weight [kilograms] approx. 950
Type 59 1933–35

Year of manufacture 1933–35
Units built 8
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes
Carburetor 2 Zenith
Power [HP at revolutions/min] 250 at 5500
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.6
Wheel track [meters] 1.25
Tire size 5.50 x 19
Weight [kilograms] approx. 750
Type 64 1939

Year of manufacture 1939
Units built 1
Engine 8-cylinder in-line engine, 2 valve/
cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 4432/84 x 100
Compressor yes
Carburetor Stromberg
Power [HP at revolutions/min] 170
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 3.3
Wheel track [meters] 1.35
Tire size 18 x 550
Weight [kilograms] 1300
Type 68 1945–46

Year of manufacture 1945-46
Units built 2
Engine 4-cylinder in-line engine, 4 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 320/48.5 x 50
Compressor yes
Carburetor 1 Solex
Power [HP at revolutions/min] 25
Forward gears 2
Drive -
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, reverse quarter-elliptical springs
Wheelbase [meters] 2.2
Wheel track [meters] 1.15
Tire size -
Weight [kilograms] 400
Type 73 1945–47

Year of manufacture 1945–47
Units built 1
Engine 4-cylinder in-line engine, 3 valve/cylinder, overhead camshaft
Cubic capacity/bore [cm³/mm] 1488/76 x 82
Compressor -
Carburetor 1 Weber
Power [HP at revolutions/min] –
Forward gears 4
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle,
inverted quarter-elliptical springs
Brakes Cable drum brakes
Wheelbase [meters] 2.4
Wheel track [meters] 1.2
Tire size 18 x 5
Weight [kilograms] 800
Type 101 1951

Year of manufacture 1951
Units built 8
Engine 8-cylinder in-line engine, 2 valve/cylinder, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 3257/72 x 100
Compressor yes, at T101C
Carburetor 1 Weber
Power [HP at revolutions/min] 135 at 5500
Forward gears 5
Drive shaft-driven
Front wheel suspension live axle, semi-elliptical springs
Back wheel suspension live axle, inverted quarter-elliptical springs
Brakes Hydraulic drum brakes
Wheelbase [meters] 3.3
Wheel track [meters] 1.35
Tire size 6 x 17
Weight [kilograms] Chassis only approx. 1050, with body approx. 1450
Type 251 1955–56

Year of manufacture 1955–56
Units built 3
Engine 8-cylinder in-line engine, 2 overhead camshafts
Cubic capacity/bore [cm³/mm] 2486/76 x 68.5
Compressor -
Carburetor 4 Weber
Power [HP at revolutions/min] 230
Forward gears 5
Drive shaft-driven
Front wheel suspension live axle
Back wheel suspension de Dion
Brakes disc brakes
Wheelbase [meters] 2.186 (2nd Version 2.3)
Wheel track [meters] front: 1.3, rear: 1.28
Tire size 17 x 6
Weight [kilograms] 750
EB 110 1991–94

Year of manufacture 1991–94
Units built 139
Engine V12, 4 overhead camshafts
Cubic capacity/bore [cm³/mm] 3500/81 x 56.6
Compressor 4 turbo charger
Carburetor electronic fuel injection
Power [HP at revolutions/min] 560
Forward gears 6
Drive 4-wheel
Front wheel suspension wishbone axle
Back wheel suspension double wishbone axle
Brakes internally ventilated disc brakes
Wheelbase [meters] 2.55
Wheel track [meters] front: 1.55, rear: 1.62
Tire size front: 245/40 R18, rear: 325/30 R 18
Weight [kilograms] approx. 1600
